BH24 45 Degree Weld-On Half Hanger
Description:

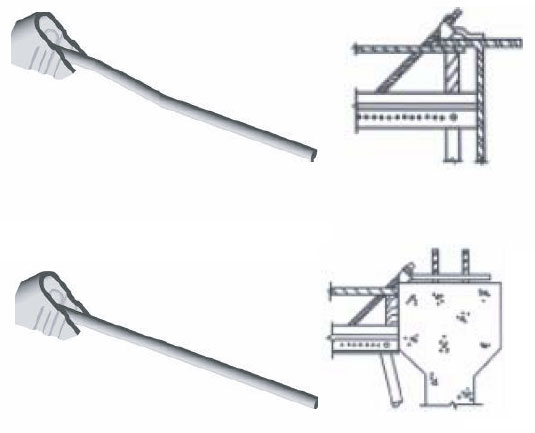

OCM BH24 45 Degree Weld-On Half Hangers are fabricated with a 1/2" diameter 45 degree End Clip and is available in 2 styles and 2 different lengths. The 1ACB type is bent and intended to be welded to the exterior beam and in turn support the fascia formwork. The 1ACS type is straight and is normally welded to the stirrups of a concrete beam.
Features:
- Heavy Duty for 6,000 SWL is available upon request
- SWL provides a Safety Factor of approximately 2:1
- Availble in plain or galvanized
- Available in Bent for welding to beam and stright for welding to stirrups of beam
- WARNING: Welding of any hanger should be done by a certified welder
Filters Sort results
Reset Apply
OCM Part Number | Length (in) | Style | Safe Working Load (lbs) | Get a Quote |
|---|---|---|---|---|
12" | Bent | 3,500 | ||
6" | Bent | 3,500 | ||
12" | Straight | 3,500 | ||
6" | Straight | 3,500 | ||
12" | Straight | 6,000 | ||
24" | Straight | 6,000 | ||
6" | Straight | 6,000 |
