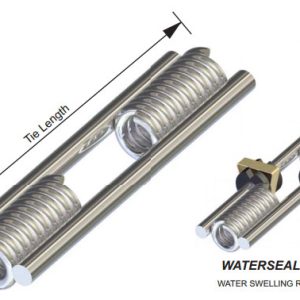

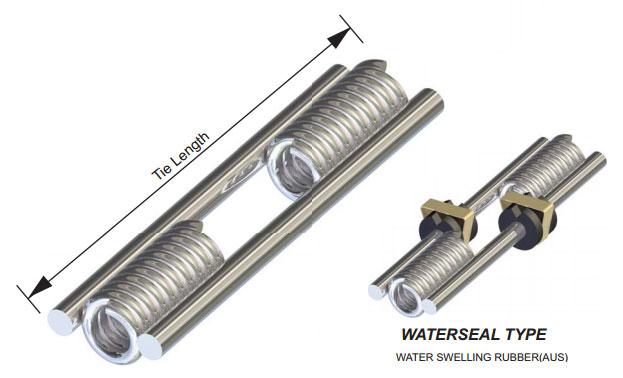

2 Strut Full Strut Coil Tie 3/4"
Description:
OCM Full Strut Coil Ties are one of the most economical and versatile form tie systems available. They are commonly used with self cleaning Coil Rod or Coil Bolts.
Features:
- Economical and versatile form tie system
- Can be provided with different capacities and almost any length
- Can be provided as plain or mechanically galvanized
- Coil Thread is self cleaning and ideal for dirty jobsites or use in concrete formwork
Filters Sort results
Reset Apply
OCM Part Number | Tie Length (in) | Box Quantity | Weight Per Piece (lbs) | Safe Working Load (lbs) | Get a Quote |
|---|---|---|---|---|---|
6 | 100 | 0.75 | 6,750 lbs. | ||
8 | 100 | 0.75 | 6,750 lbs. | ||
10 | 100 | 0.98 | 6,750 lbs. | ||
12 | 100 | 0.98 | 6,750 lbs. | ||
14 | 100 | 1.07 | 6,750 lbs. | ||
16 | 100 | 1.14 | 6,750 lbs. | ||
18 | 100 | 1.23 | 6,750 lbs. | ||
20 | 100 | 1.32 | 6,750 lbs. | ||
24 | 100 | 1.48 | 6,750 lbs. |
Additional Notes: 1/2" Heavy Duty (6,750 SWL) available upon request - 4 Strut Available. Additional lengths available upon request. Waterseal available upon request. SWL provides a safety factor of approximately 2 to 1.
