Coil Bolts

Description:

OCM Coil Bolts are made from high strength steel, and are used with different types of coil thread nuts and inserts in concrete formwork, bridge deck forming, or precast concrete applications.

Features:

Standard sizes of 1/2" and 3/4" Diameter up to 6" length are readily available
Coil Thread is self cleaning and ideal for dirty job sites or use in concrete formwork
Special sizes and lengths can be fabricated upon request

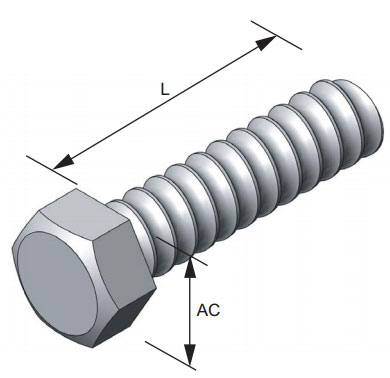

OCM Part Number	D - Size (in)	L - Length (in)	AC - Across Flats (in)	Carton Quantity	Weight Per 100 Pieces (lbs)	Safe Working Load (lbs)	Get a Quote
50A200CBH0P	1/2"	2"	3/4"	500	12.8	4,125	Quote
50A250CBH0P	1/2"	2-1/2"	3/4"	400	15.1	4,125	Quote
50A300CBH0P	1/2"	3"	3/4"	300	17.1	4,125	Quote
50A350CBH0P	1/2"	3-1/2"	3/4"	250	19.4	4,125	Quote
50A400CBH0P	1/2"	4"	3/4"	250	21.6	4,125	Quote
50A500CBH0P	1/2"	5"	3/4"	200	26.3	4,125	Quote
50A600CBH0P	1/2"	6"	3/4"	150	30.7	4,125	Quote
50A150CBH0P	1/2"	1-1/2"	3/4"	500	10.6	4,125	Quote
62S400CBH0P	5/8"	4"	1"	100	35.4	7,500	Quote
62S200CBH0P	5/8"	2"	1"	100	21.8	7,500	Quote
75S300CBH0P	3/4"	3"	1-1/8"	100	42.7	9,000	Quote
75S350CBH0P	3/4"	3-1/2"	1-1/8"	100	47.8	9,000	Quote
75S400CBH0P	3/4"	4"	1-1/8"	100	52.5	9,000	Quote
75S500CBH0P	3/4"	5"	1-1/8"	75	62.5	9,000	Quote
75S600CBH0P	3/4"	6"	1-1/8"	75	72.4	9,000	Quote
75S250CBH0P	3/4"	2-1/2"	1-1/8"	150	39.4	9,000	Quote
75S200CBH0P	3/4"	2"	1-1/8"	150	32.8	9,000	Quote

Additional Notes: SWL provides a safety factor of approximately 2 to 1.
