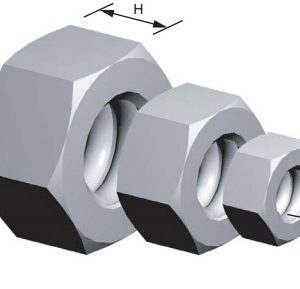

Coil Nuts
Description:
OCM Coil Nuts are made from high strength steel, and are used with different types of coil thread bolts and rods in concrete formwork, bridge deck forming, or precast concrete applications.
Features:
- Can be provided in different sizes from 1/2" to 1 1/2"
- Standard is provided with Right Hand Thread, but left hand is also available
- Coil Thread is self cleaning and ideal for dirty jobsites or use in concrete formwork
Filters Sort results
Reset Apply
OCM Part Number | D - Size (in) | H - Height (in) | AC - Across Flats (in) | Box Quantity | Weight Per 100 Pieces (lbs) | Safe Working Load (lbs) | Get a Quote |
|---|---|---|---|---|---|---|---|
1" | 0.984 | 1.6 | 150 | 15 | 24,000 | ||
1-1/4" | 1.219 | 2.123 | 70 | 75.2 | 36,000 | ||
1-1/2" | 1.5 | 2.375 | 40 | 129 | 47,500 | ||
1/2" | 0.484 | 0.863 | 500 | 6.2 | 6,000 | ||
1/2" | 0.484 | 0.863 | 500 | 6.2 | 6,000 | ||
5/8" Finished | 0.547 | 0.93 | 500 | 11.4 | 8,000 | ||
3/4" Heavy | 0.734 | 1.231 | 250 | 17.8 | 12,000 | ||
3/4" Finished | 0.641 | 1.107 | 500 | 11.4 | 12,000 | ||
7/8" | 0.859 | 1.416 | 250 | 27.6 | 16,000 |
Additional Notes: SWL provides a safety factor of approximately 2 to 1. Two standard coil nuts of each size equal the strength of one heavy duty tall coil nut of the same size.
