Fitting Up (Speed) Bolts
Description:

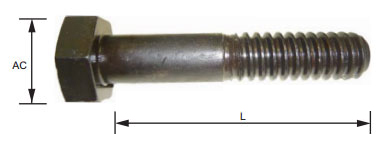

OCM Fitting Up (Speed) Bolts are used for securing steel form panels together. The tapered nose of the bolt acts as a draft pin and helps align the forms. The thread design and clearances between the nut and bolt permits quick assembly and dismantling of the forms. The open thread design permits concrete to be easily knocked out of the threads.
Features:
- Available in several different lengths
- Custom lengths are available
- Heat Treated for extended durability
- 2" size is full threaded for added versatility
Filters Sort results
Reset Apply
OCM Part Number | D - Size (in) | L - Length (in) | AC - Across Flats (in) | Thread Length (in) | Carton Quantity | Weight Per Piece (lbs) | Grade | Get a Quote |
|---|---|---|---|---|---|---|---|---|
3/4" | 2" | 1.25" | Full | 125 | 0.37 | ASTM A325 | ||
3/4" | 3" | 1.25" | Full | 75 | 0.5 | ASTM A325 | ||
3/4" | 4" | 1.25" | 3" | 75 | 0.62 | ASTM A325 | ||
3/4" | 5" | 1.25" | 3" | 50 | 0.75 | ASTM A325 | ||
3/4" | 6" | 1.25" | 3-1/8" | 50 | 0.85 | ASTM A325 |
