Heavy Duty "Tall" Coil Nuts
Description:
OCM Tall Coil Nuts are made from high strength steel, and are used with different types of coil thread bolts and rods in concrete formwork, bridge deck forming, or precast concrete applications.
Features:
- Can be provided in different sizes from 1/2" to 1 1/2"
- Standard is provided with Right Hand Thread, but left hand is also available
- Coil Thread is self cleaning and ideal for dirty job sites or use in concrete formwork
- Only 1 Tall Coil Nut is required to develop Ultimate Load when used with High Strength Coil Rod
Filters Sort results
Reset Apply

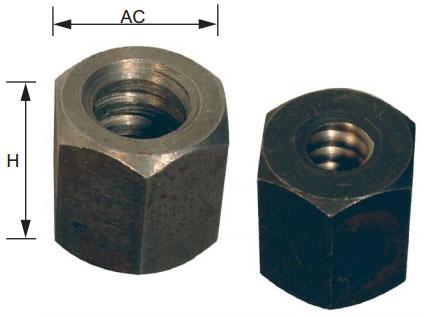

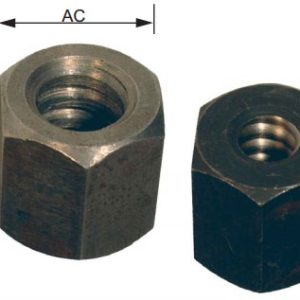

OCM Part Number | D - Size (in) | H - Height (in) | AC - Across Flats (in) | Box Quantity | Weight Per 100 Pieces (lbs) | Safe Working Load (lbs) | Get a Quote |
|---|---|---|---|---|---|---|---|
1/2" | 1-1/8" | 1-5/16" | 100 | 6.2 | 9,000 | ||
3/4" | 1-1/8" | 1-5/16" | 100 | 11.4 | 18,000 | ||
1" | 2" | 1-3/8" | 100 | 11.4 | 37,500 | ||
1-1/4" | 2-1/2" | 1-7/8" | 100 | 15 | 56,000 |
Additional Notes: SWL provides a safety factor of approximately 2 to 1.
