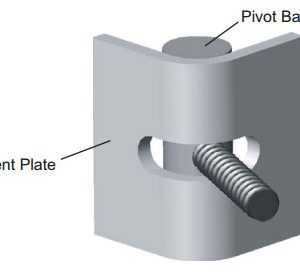

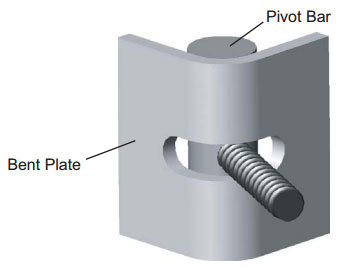

Weld Angle Bracket
Description:
OCM Weld Angle Brackets are designed to tie one-sided forming to steel piles, metal beams, weld plates, etc. The pivot pin is furnished with Coil Thread or Euro Thread. The OCM Weld Angle Bracket allows the form tie a pivot range of 110° (55° each direction), and will exceed the tensile capacity of the form tie when properly installed by a certified welder.
Features:
- Available in Coil or Euro Thread
- Makes One-Sided Forming easier and safer when installed by a certified welder
- Allows for 110° (55° each direction) of pivot range
Filters Sort results
Reset Apply
OCM Part Number | D - Size (in) | Weight Per Piece (lbs) | Safe Working Load (lbs) | Get a Quote |
|---|---|---|---|---|
1/2" ⋅ 3/4" | 1.9 | 9,000 ⋅ 18,000 | ||
1" | 5.85 | 31,500 | ||
1/2" | 2.15 | 9,000 | ||
3/4" | 2.1 | 18,000 | ||
1" | 4.85 | 31,500 |
