Erection Anchor Ring Clutch

Description:

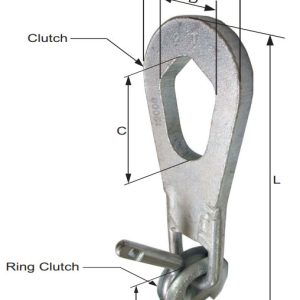

Erection Anchor Ring Clutch consists of a bail, clutch and curved bolt handle. It is used to lift precast concrete panels.

Features:

  • Durable and easy to use.

Filters Sort results
Reset Apply
OCM Part Number
Ring Clutch System (Tons)
Clutch ID Load (Tons)
Overall Length (in)
B (in)
C (in)
D (in)
Weight Per Piece (lbs)
Get a Quote
OCMFLRC-2T
2T
2-2.5T
10-15/16
3-1/8"
3-1/16
2-5/32
4.6
Quote
OCMFLRC-4T
4T
4-5T
12-31/32
4-1/16
3-15/16
2-15/32
9.25
Quote
OCMFLRC-8T
8T
8-10T
17-3/8
5-7/8
5-1/4
3-3/8
22.8
Quote

Additional Notes: SWL provides a safety factor of approximately 5 to 1.
