Rapid Plate Dowels

Description

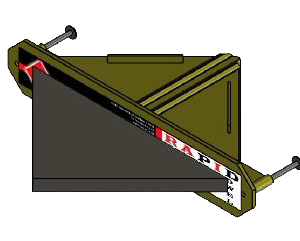

The Rapid Plate Dowel System is a two-part load transfer solution used in concrete slabs to control joint movement and transfer loads between slab sections. It consists of a high-strength steel plate and a durable plastic sleeve designed for precise placement and fast installation. Ideal for industrial and commercial flatwork.

The OCM Rapid Plate dowel is a patent pending design.

Features

  • Sturdy internal guides create support to prevent deflection during pouring and curing of concrete.
  • Reinforced outer fins prevent sleeve from delamination when removing formwork from cured concrete.
  • Robust inner grooves keep the guide in place, preventing any misalignment during any tough duty job site handling.

Documentation

Filters Sort results
Reset Apply
OCM Part Number
Description
Sleeve Color
Slab
Spacing*
Working Load
Get a Quote
RPD-A250

1/4″ rapid plate dowel complete assembly, plate and sleeve included
Orange
5" to 6-1/2"
18"
4000
Quote
RPD-S250

1/4″ rapid plate dowel sleeve, plastic assembly, used with RPD-P250
Orange
5" to 6-1/2"
18"
4000
Quote
RPD-P250

1/4″ steel dowel plate, 4.5″ x 4.5″ x 1/4″ square plate, used with RPD-S250
Orange
5" to 6-1/2"
18"
4000
Quote
RPD-A375

3/8″ rapid plate dowel complete assembly, plate and sleeve included
Yellow
7" to 9"
18"
6000
Quote
RPD-S375

3/8″ rapid plate dowel sleeve, plastic assembly, used with RPD-P375
Yellow
7" to 9"
18"
6000
Quote
RPD-P375

3/8″ steel dowel plate, 4.5″ x 4.5″ x 3/8″ square plate, used with RPD-S375
Yellow
7" to 9"
18"
6000
Quote
RPD-A750

3/4″ rapid plate dowel complete assembly, plate and sleeve included
Green
9" to 12"
18"
10000
Quote
RPD-S750

3/4″ rapid plate dowel sleeve, plastic assembly, used with RPD-P750
Green
9" to 12"
18"
10000
Quote
RPD-P750

3/4″ steel dowel plate, 4.5″ x 4.5″ x 3/4″ square plate, used with RPD-S750
Green
9" to 12"
18"
10000
Quote
* Spacing shown based on ACI 360 Design of Slabs-on-Ground
