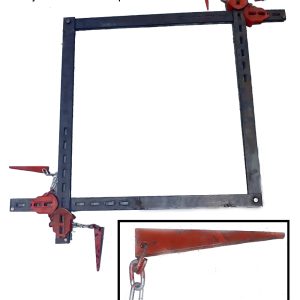

OCM Scissor Clamps, Column Clamps
Description:
OCM Scissor Clamps, Column Clamps are a convenient, affordable, and accurate method of formong your concrete columns quickly. The OCM Scissor Clamps, Column Clamps assemble quickly and tightly to your wood forms. Price: Price is PER SET or 4 sides.
Features:
- Fast economical way to build column forms.
Filters Sort results
Reset Apply
OCM Part Number | Clamp Size | Column Size (in) | Description | Get a Quote |
|---|---|---|---|---|
36 | 6" - 23 1/2" | Adjustable Column Clamp (Set of 2) - 5/16" Thick X 2" Wide X 36" Long - 8 Slots per Bar | ||
38 | 10" - 24" | Adjustable Column Clamp (Set of 2) - 3/8" Thick X 2" Wide X 38" Long - 8 Slots per Bar | ||
48 | 10" - 34" | Adjustable Column Clamp (Set of 2) - 3/8" Thick X 2-1/2" Wide X 48" Long - 12 Slots per Bar | ||
48/26 | 6" - 12"; 10" - 34" | Adjustable Column Clamp (Set of 2) - First Bar 3/8" Thick X 2-1/2" Wide X 48" Long - 12 Slots on Bar - Second Bar 3/8" Thick X 2-1/2" Wide X 26" Long - 8 Slots per Bar | ||
50 | 12" - 36" | Adjustable Column Clamp (Set of 2) - 3/8" Thick X 2-1/2" Wide X 50" Long - 12 Slots per Bar | ||
50/38 | 10" - 24"; 12" - 36" | Adjustable Column Clamp (Set of 2) - First Bar 3/8" Thick X 2-1/2" Wide X 50" Long - 12 Slots on Bar - Second Bar 3/8" Thick X 2-1/2" Wide X 38" Long - 8 Slots per Bar | ||
60 | 22" - 46" | Adjustable Column Clamp (Set of 2) - 3/8" Thick X 3" Wide X 60" Long - 12 Slots per Bar | ||
72 | 34" - 58" | Adjustable Column Clamp (Set of 2) - 3/8" Thick X 3" Wide X 72" Long - 12 Slots per Bar | ||
Pin/Chain Assy | Adjustable Column Clamp Wedge w/Chain |
Additional Notes: Concrete Dimensions based on 3/4" plywood with flat 2 X 4's at 6" On Center.
